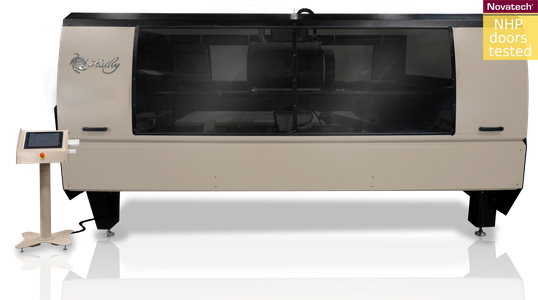

KS-C Model - Door Machining Center

The KS-C model is is a machining center with 4 servo controlled axes and 6 virtual axes (CNC) capable of machining many doors per shift. The sturdy 8900 lb frame reduces vibration and ensures high-precision machining. This model can be interconnected with other EuGénie products such as the VE-1 loader / unloader from VICKY Series or TRACY Series conveyors to form a complete production line.

KEY FEATURES

- CNC machining center with 4 servo controlled
 axes & 6 virtual axes

- Three dependant machining heads
 (8 kW, 3.3 kW & 2.2 kW)

- Machinable materials: wood, steel, aluminum, PVC, composite materials and fiberglass

- Optional fully enclosed and safe machine

- Automatic adjustment to the door width

- Automatic infeed & outfeed

- User-friendly numerical control software

- 5-spaces tool changer

Find out more

ROBUSTNESS

The mecano-welded steel frame is very robust. The weight and strength of this machining center eliminate vibrations and ensure high precision machining. Completely closed, this machining center is among

the safest on the market.


FLEXIBILITY

The 3 machining heads offer multiple possibilities to companies wishing to perform multiple machining on the same door. The KS-C is an all-in-one solution that reduces the number of machines and operators required to machine doors.


PRECISION

For an efficient production, this model is equipped with a double probe thanks to which each machining is just and precise. The possible deflections of the door are calculated thanks to the latter allowing the operations to be carried out to the highest precision.


EASE OF USE

All operations can be managed with the fingertips on the 12-inch colour touch screen. The interface of the digital control software is very user-friendly, making the configuration of machining parameters easy.

TECHNICAL SPECIFICATIONS

  • Height: 6' 8"
  • Length: 14′ 7″
  • Width: 10′ 2"
  • Footprint: 148,3 sq. ft.
  • Weight: 8900 lbs

  • Door width capacity: 9 3/4 - 48″
  • Max door height capacity: 96″
  • Max door thickness capacity: 1 3/8 - 2 1/4″
  • Max steel sheet gauge capacity: 20 - 26

TOOLS

A-   Surface electrospindle 8 kW

B-   Lock electrospindle 3.3 kW
      with single probe

B2- Single drill

C-   Hinge electrospindle 2.2 kW
      with double probe

C2- Single pneumatic drill
      or multiple electrical milling
