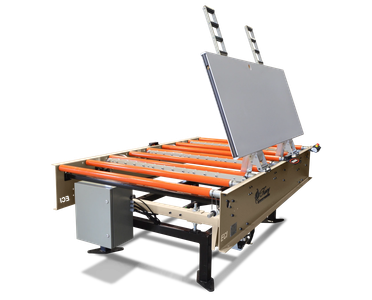

TM-E Model - Automatic Door Conveyor

The TM-E model is an automatic door conveyor equipped with non-marking urethane rollers that allow it to perform the loading or unloading of doors in a production line. This equipment is interconnected with other EuGénie products to ensure the optimal operation of the KS-C or KS-S production lines, from the KATHY Series.

KEY FEATURES

- Motorized non-marking urethane rollers

- Height adjusted for next machine
 alignment and best ergonomy

- Multiple customizable options

- Solid structure

Find out more

SOLID STRUCTURE

Required on all EuGénie machines, the structure is very robust. It effectively supports heavy doors and sturdy movements. Made from high quality materials, as simple as this automatic door conveyor can be, its complex components are upscale. The TM-E can be placed anywhere in a production line.


NO-SCRATCH & IDEAL HEIGHT

To move the door, the operator places it on the rollers and then lets the conveyor transport the door automatically to the next machine. Thanks to its ergonomic height, it becomes easy to handle the door on the conveyor. The door can also be tilted forward on the side of the conveyor for easy removal, adding to the ergonomics of the TM-E.


DOOR REFERENCING

Also optional, it is possible to add an automatic referencing system with door measurement to validate the size of the door to the next machine, preventing possible human errors. The door referencing option can also be centred depending on the production flow of line and the alignment of the next machine.


INTUITIVE SOFTWARE

Also composed of non-marking urethane, the TM-E can be equipped with wheels on one side to align the door perfectly with the next machine in the production line. As the door automatically rolls its way, the wheels gently roll on the side of the door without leaving a single mark.

TECHNICAL SPECIFICATIONS

  • Height: 3 - 3' 4"
  • Length: 8' 4"
  • Width: 5′ 4"
  • Footprint: 44.44 sq. ft.

  • Weight: 480 lbs
  • Door width capacity: 9 3/4 - 48″
  • Max door height capacity: 96″
  • Door thickness capacity: 1 3/8 - 2 1/2″

TOOLS

A-  Motorized non-marking urethane rollers
