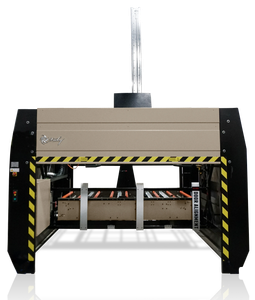

VE-1 Model - Door Loader / Unloader

The VE-1 model is controlled by two servomotors that allow it to perform the loading or unloading of doors on a production line. This equipment is interconnected with other EuGénie products to ensure the optimal operation of the KATHY production lines.

KEY FEATURES

- Automatic 2-axis servo control movement for accurate and quick positioning

- Two suction cups covered with foam pads

- User-friendly numerical control software

- Non-marking urethane rollers on conveyor

- Door width automatic reading

Find out more

STURDY

The VE-1 model is controlled by two servomotors that allow it to perform the loading or unloading of doors on a production line. The hull is made of rigid side panels.

STRONG BUT GENTLE

Each door is subsequently raised and moved by the suction lift system. The latter is composed of an engine of 6.3 kW, a powerful blower and a lifting column. The lifting force of the column is stronger than required to lift a door. The VE-1 model moves the full or pre-glazed doors with the same ease thanks to its ability to adjust the suction flow according to the door model. It can handle batches of 26 doors of 1¾’’ thick and weighing 240 pounds at the most.

FULL SECURITY

Optionally, it is also possible to increase the safety of the VE-1 model by equipping it with an infrared photoelectric barrier and mesh doors installed on the rear of the machine. It acts as an emergency stop device as soon as an object or person interrupts the light beam or opens the doors on the back.

CLEVER

Optionally, this model can also be equipped with a barcode reader that is attached inside or outside the machine to further facilitate the operation. All operations can also be managed from the 12-inch colour touch screen installed on an independent console. The control interface is intuitive for operators.

TECHNICAL SPECIFICATIONS

  • Height: 14' 7"
  • Length: 13'
  • Width: 11′ 2"
  • Footprint: 174 sq. ft.

  • Weight: 4079 lbs
  • Door width capacity: 9 - 48″
  • Door height capacity: 12 - 96″
  • Door stack height capacity: 50″

TOOLS

A-  Vacuum lifting system equipped with suction cups

B-  Foam pads
