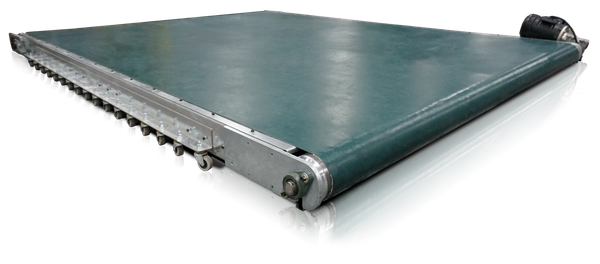

TM-I Model - Automatic Debris Conveyor

The TM-I model is an automatic debris conveyor equipped high resistance mat that allows it to perform the unloading of door debris and cut-outs in a production line. The cut-out conveyor allows the production line to process without any interventions due to the cut-outs accumulation. A typical customer machining exterior doors would need to stop the machine after 8 to 10 doors to remove the cut-outs if they don’t have the TM-I model. The high resistance mat is ideal for steel and fiberglass cut-outs. This model is to go underneath the KS-S or KS-C models from the KATHY Series.

KEY FEATURES

- Motorized high resistance mat conveyor

- Multi-directional transport wheels

- Compatible with KS-S & KS-C models
 from KATHY Series

- Robust structure

Find out more

HIGH RESISTANCE

Its compact and robust structure can support the weight and can withstand the fall of very heavy door cutouts. The TM-I model is an automatic debris conveyor equipped high resistance mat that allows it to perform the unloading of door debris and cut-outs in a production line. The high resistance mat is ideal for steel and fiberglass cut-outs.


CONTINUOUS FLOW

The cut-out conveyor allows the production line to process without any interventions due to the debris accumulation. A typical customer machining exterior doors would need to stop the machine after 8 to 10 doors to remove the cut-outs if they don’t have the TM-I automatic debris conveyor.


COMPATIBLE

This automatic debris conveyor is interconnected with other EuGénie products to ensure the optimal operation of the KS-C or KS-S production lines.


CONNECTIBLE

To remove the debris, the conveyor automatically receives a message from the associated machining center, either the KS-S or KS-C model from KATHY series, after each machining sequence. The operator can also manage the conveyor manually via the touchscreen of the connected machine.

TECHNICAL SPECIFICATIONS

  • Height: 1' 1"
  • Length: 10' 5"
  • Width: 9′ 1"

  • Footprint: 96.6 sq. ft.
  • Weight: 890 lbs

TOOLS

A-  Motorized high resistance mat conveyor
